Polyvinyl Butyral (PVB) Film - High-safety interlayer for laminated glass
Founded in 2005, ACE International Co., Ltd. is China's first professional PVB film manufacturer. With over 20 years of development, ACE has become a market leader with an annual production capacity of 8,000 tons, utilizing imported production lines, extensive experience, and mature technology.
We specialize in the R&D and production of PVB resin, PVB film, plasticizers, and laminated glass to meet global market demands. Our factory is ISO9001 and SGS certified, with comprehensive PVB product testing reports available.
Product Overview

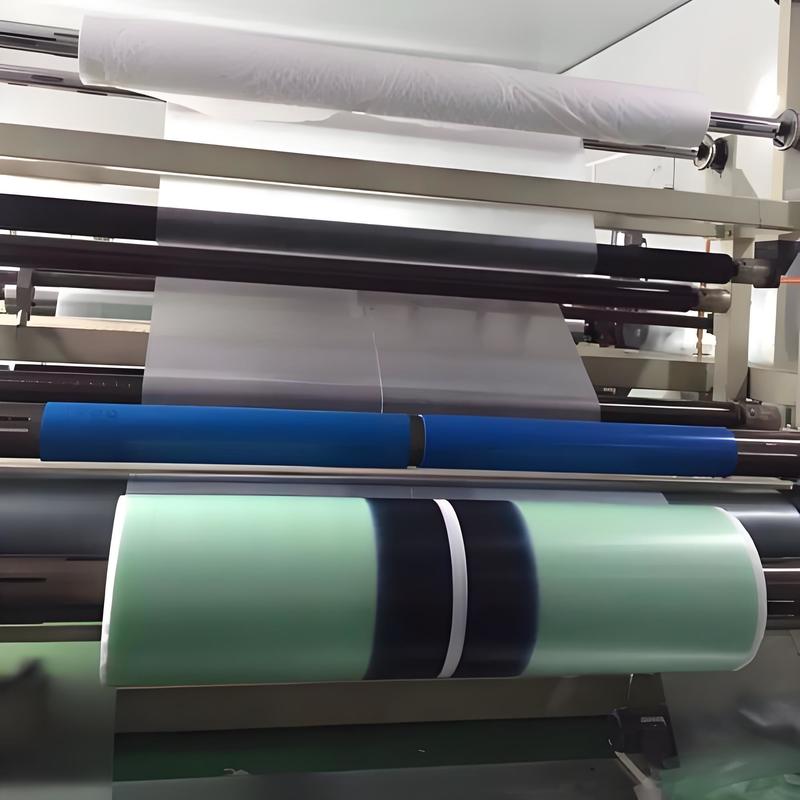

ACE PVB film is manufactured through extrusion molding using PVB resin, plasticizers, and additives. With outstanding transparency, heat resistance, and elasticity, our PVB film is widely used in automotive windshields and architectural safety glass.
PVB interlayer not only blocks UV radiation but also provides effective sound insulation and thermal insulation, making glass products comfortable, aesthetically pleasing, and energy-efficient.
Key Benefits
- Enhanced Safety: High adhesion keeps glass fragments bonded to the interlayer upon impact, significantly reducing injury risk
- Penetration Resistance: Laminated glass with PVB interlayer resists cutting with traditional glass tools and maintains integrity under heavy impact
- Noise Reduction: Effective sound insulation creates quieter indoor environments
- Thermal Insulation: Blocks infrared radiation to minimize solar heat gain while maintaining visibility
- UV Protection: Blocks 99% of UV radiation, protecting occupants and preventing furniture fading
1. Automotive Grade PVB Film Products
Available in transparent, green stripe/transparent, blue stripe/transparent, light green, green stripe/light green, and other color options.
2. PVB Sound Insulation Film
For architectural curtain walls and automotive windshields. Thickness 0.76mm and above. When used in 2mm glass + 0.76mm PVB + 2mm glass configuration, achieves 36dB sound insulation.
3. PVB Thermal Insulation Film
Available in light and dark colors. Compared to standard films, our thermal insulation film shows significantly better infrared blocking (780-2500nm range). Thickness: 0.38-2.28mm.
- Infrared blocking rate: Light color >75%, Dark color >80%
- Visible light transmittance: Light color >87%, Dark color >82%
4. Photovoltaic Grade PVB Film
For BIPV and BAPV photovoltaic components. Thickness: 0.38-2.28mm. Technical specifications:
- Tensile strength ≥25MPa
- Roughness ≥35μm
- Light transmittance ≥90%
- Volume resistivity ≥10¹⁵Ω·mm
- Shrinkage ≤3%
5. Architectural Grade PVB Film
For architectural curtain walls. Thickness: 0.38-2.28mm. Tensile strength ≥20MPa, light transmittance ≥88%. Available in optical grade, ultra-white grade, transparent grade, and colored options (black, red, gray, blue, green).
- Optical grade: Light transmittance ≥90%, haze ≤0.4%
- Ultra-white grade: Light transmittance ≥89%, haze ≤0.8%
- Transparent grade: Light transmittance ≥88%, haze ≤1.0%
Certified to ISO9001 and SGS standards, with comprehensive product test reports available.
Certifications
Our Team
Packaging & Shipping
Packaging & Delivery Details
- Packaging: Finished PVB film separated by PE film, vacuum-packed in aluminum foil bags, placed in wooden or cardboard cases
- Delivery: Within 15 days after receiving advance payment under normal circumstances
- Storage: Store in clean warehouse at ambient temperature. Avoid direct sunlight. If unopened, store at 20°C±5°C with 20%-40% relative humidity
- Shelf Life: 2 years if packaging remains unopened at ambient temperature
Frequently Asked Questions
Q: Are you a trader or manufacturer?
A: We are the factory. We produce PVB resin, PVB film, and PVB laminated glass. We are the world's first full-industry-chain PVB product manufacturer.
Q: Can I place a sample order?
A: Yes, samples are free if you agree to share international shipping costs. Please contact us with your product requirements.
Q: What is the lead time for samples?
A: Existing samples are ready to ship. Custom samples require approximately 1 week.
Q: What shipping methods do you use for samples?
A: Any express service according to your requirements.
Q: Do you have MOQ restrictions?
A: Minimum order quantity depends on size and color specifications.
Q: What payment terms do you accept?
A: T/T or L/C. For T/T, we require 30% deposit and 70% balance against copy of B/L.
